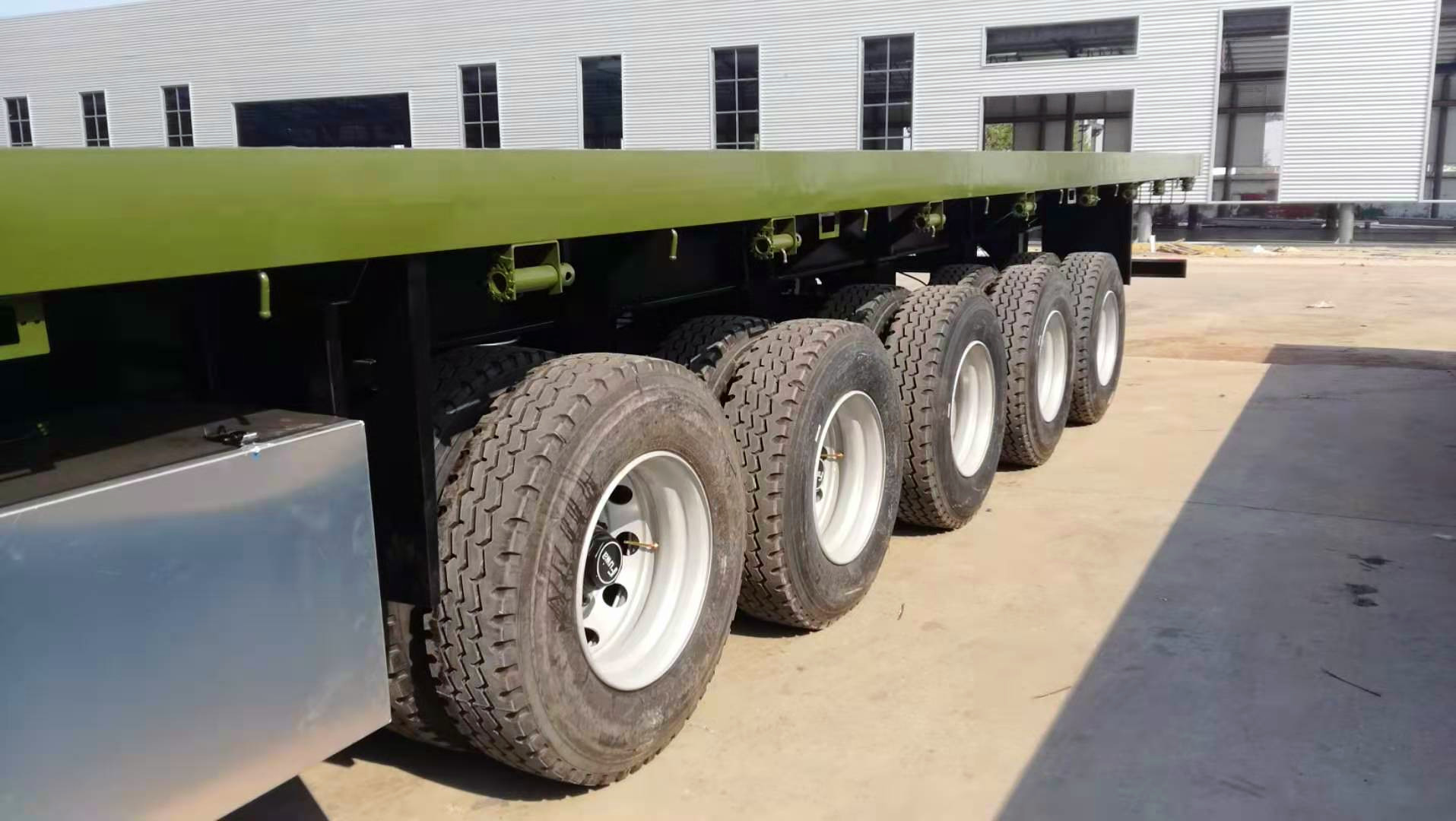

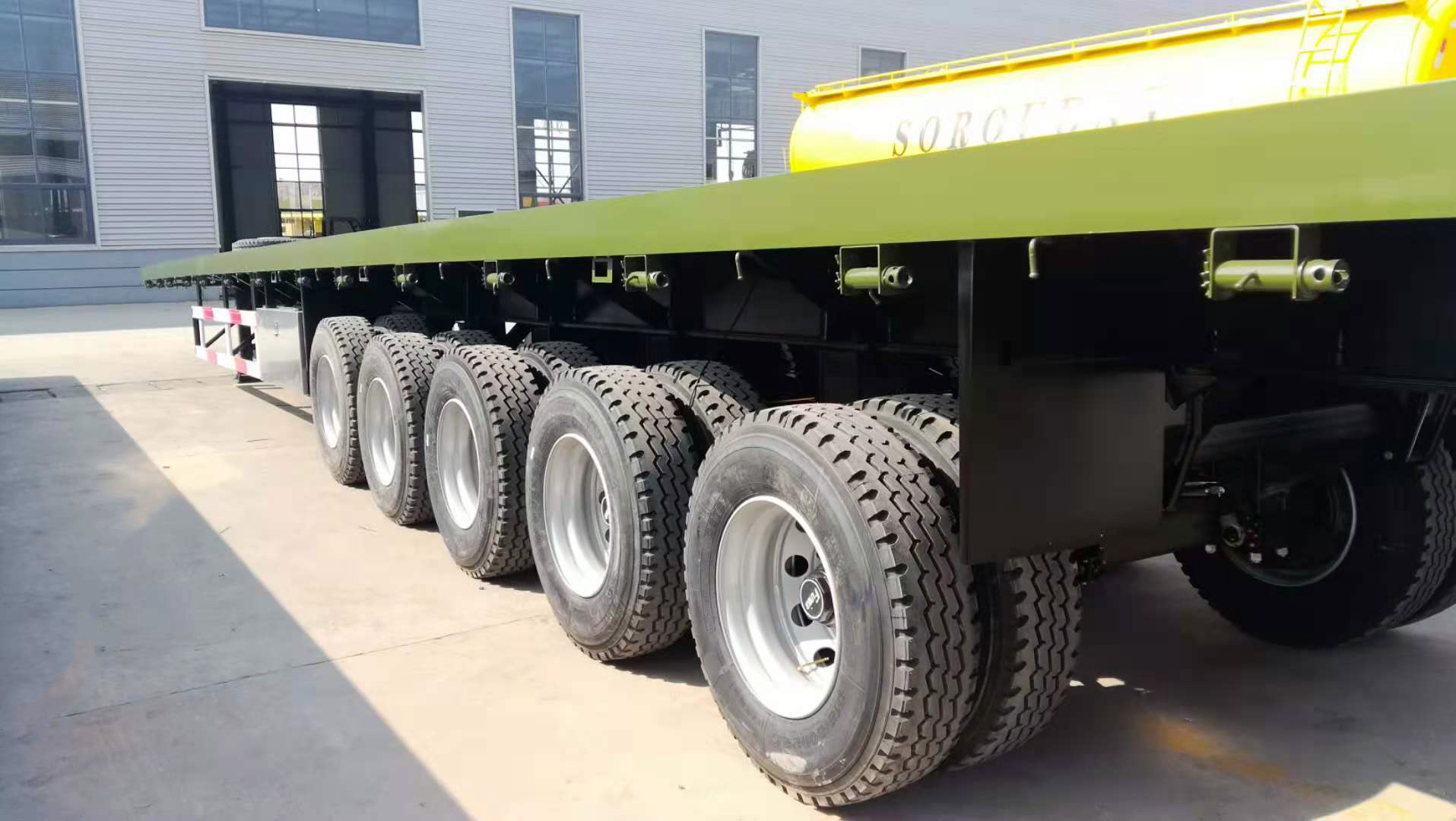

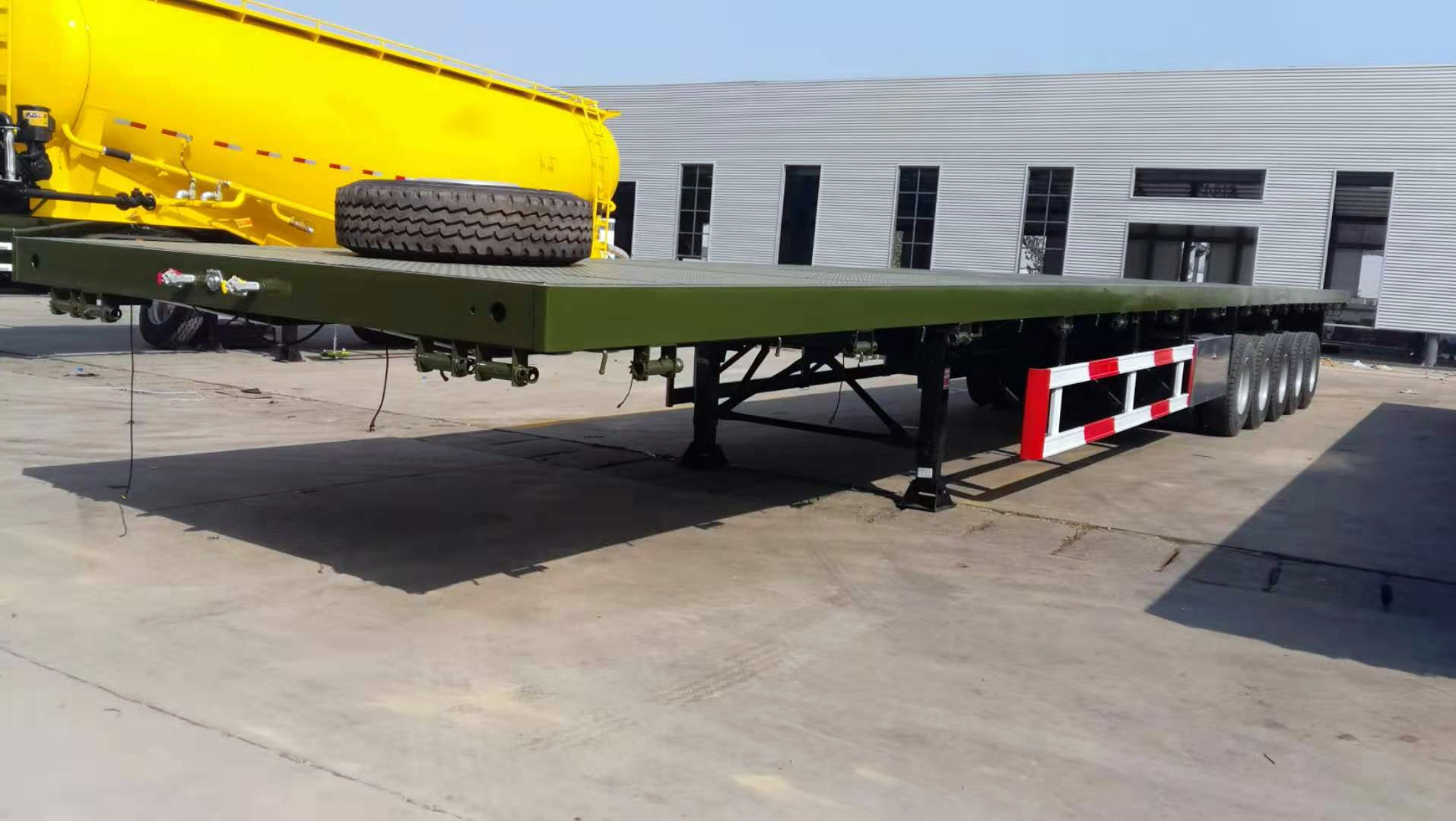

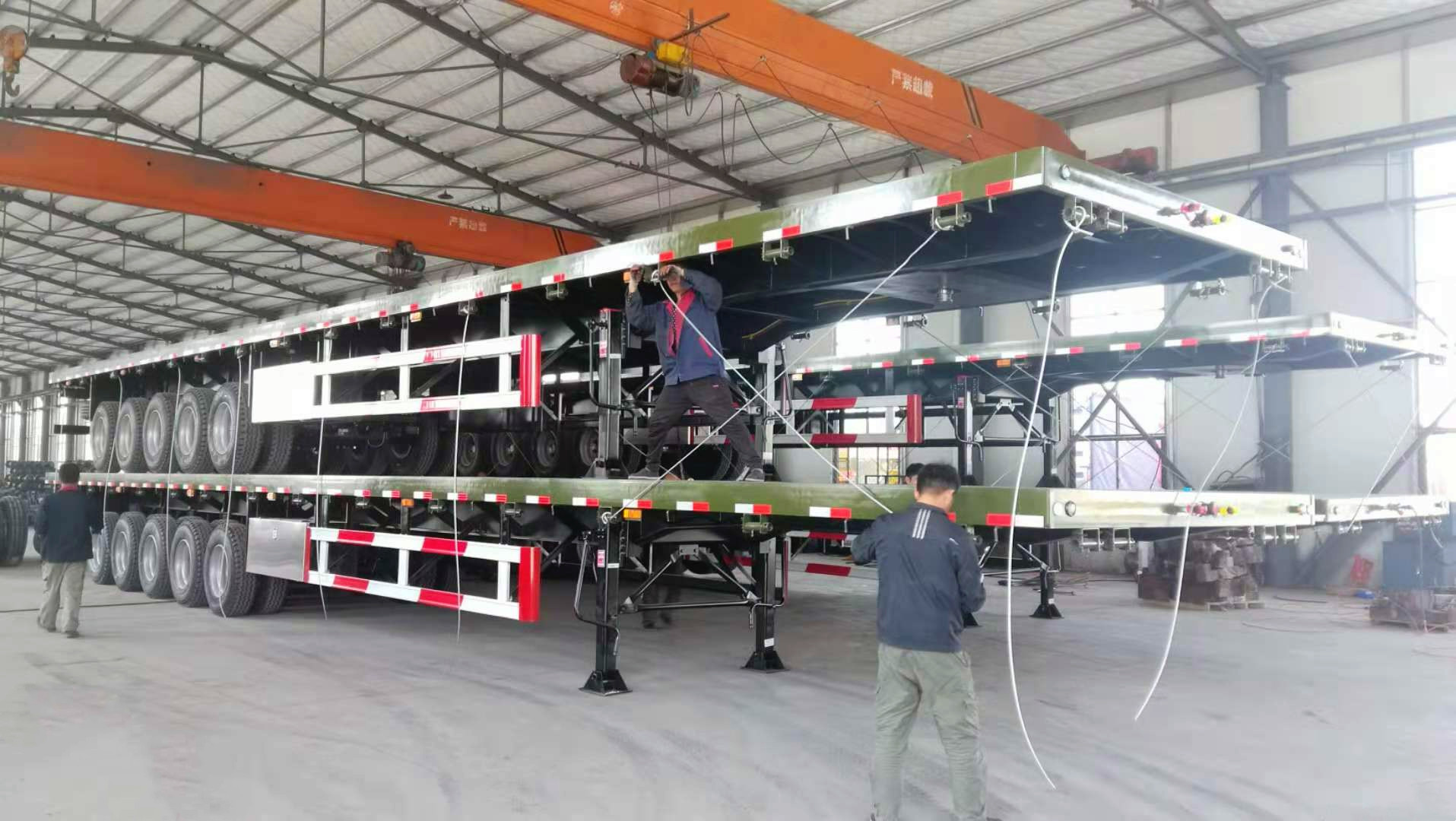

5 Axles Platform Semi Trailer Specifications
Regarding a Trailer loading performance, Axles quantity, Trailer Frame structure,and steel model are the main elements to consider. The 5 axles platform semi trailer is design for the heavier duty loading capacity requirements. It is very popular for some countries that has no loading limit requirements and metal-mining countries. The trailer is designed for rough handling and a long way and time heavy goods transportation. It order to improve the driving performance, sometimes one axles will be used the follow-up steering axle to reduce the turning angle.
Platform Trailer:
Size: 12500 mm X 2550 X 1300 mm
I beam: up/down plate 18/20 mm Middle plate: 12 mm
Beam height: 530 mm
King pin: #90
Landing Gear : 28 T (Static Load 80 T)Â Single action or linked action for customer choice
Suspension: Heavy duty 5 axles American type leaf spring suspension
Axle: 5 axles FUWA, BPW, or Chinese Brand for you choice
Tire: 12R22.5-68
12v/24V Light + electrical pipe+ 7 pin socket
Braking system: Emergency relay valve, air chamber, air tank.
Tool Box 1 pcs, spare tire carrier 1pcs
ABS: WABCO for you choice
Container Shipping Method:
As we all know that finding a reliable Chinese partner on international business, a high technology manufacturer, safe international shipping , are very important for a success business. Semi trailer is a king of oversize goods for the international shipping. According to so many year export experience, shipping by container and bulk cargo ship is the most safe method. Both of two way have the advantage and disadvantage belong to themselves.

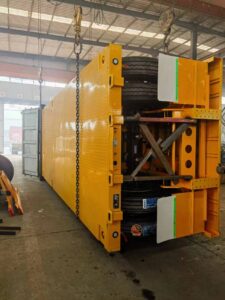

A.How a 12.5 m platform semi trailer put into a 40HC container

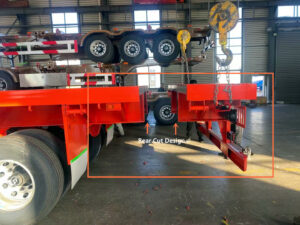

The rear of the trailer deck will be cut like the picture showing. Then push the trailer into a container. The cutting position is located at behind of the last tire, so it will not affect the final loading performance of the trailer. When you receive the trailer in your local place, what you should do is fasten together with bolts. It is a long history shipping way and already be approved by the market. So do not worry about it. This way can be ensure the stable shipping date and protect the surface of the trailer.
B. How to pack platform trailer by bulk cargo ship

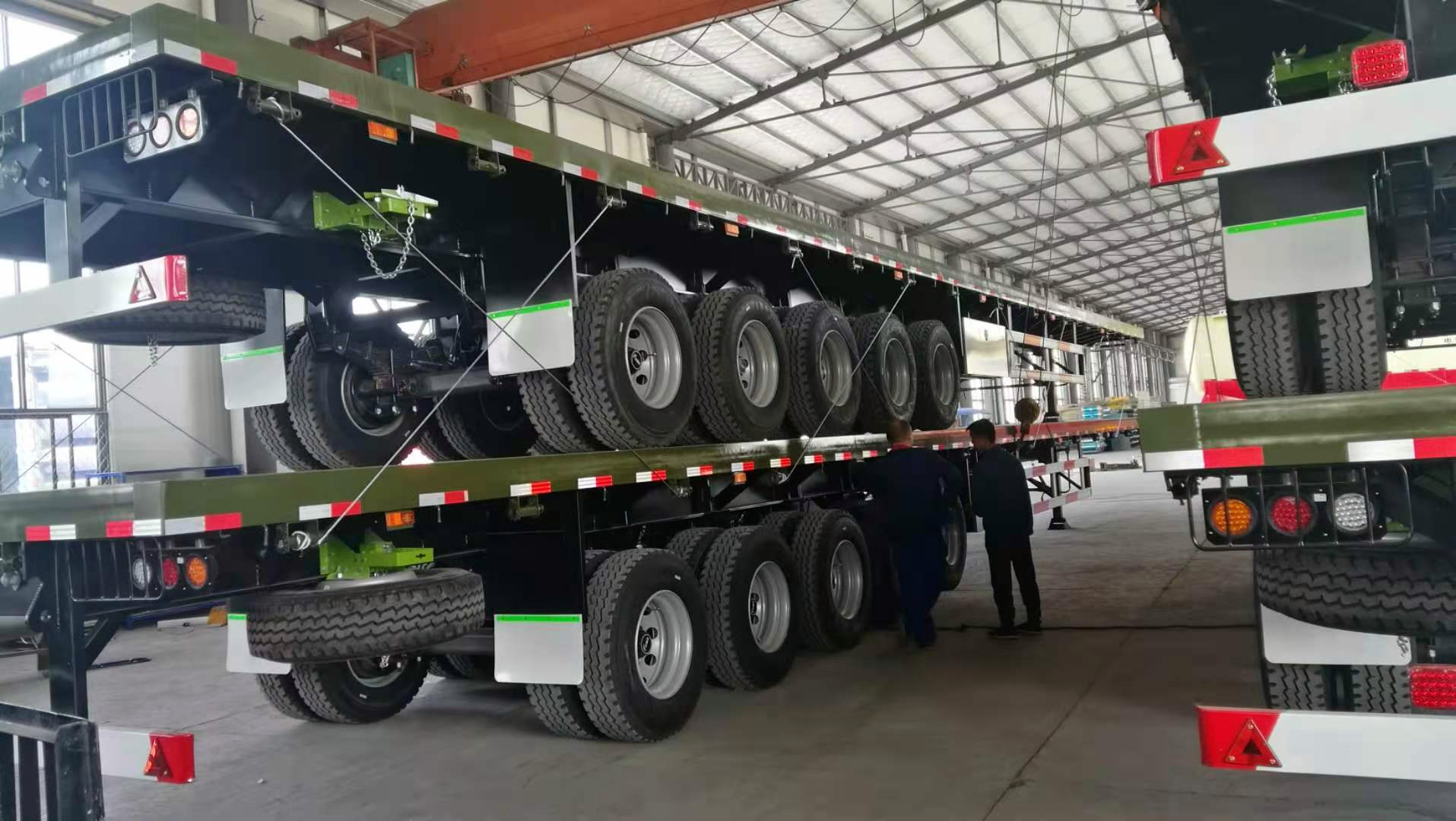

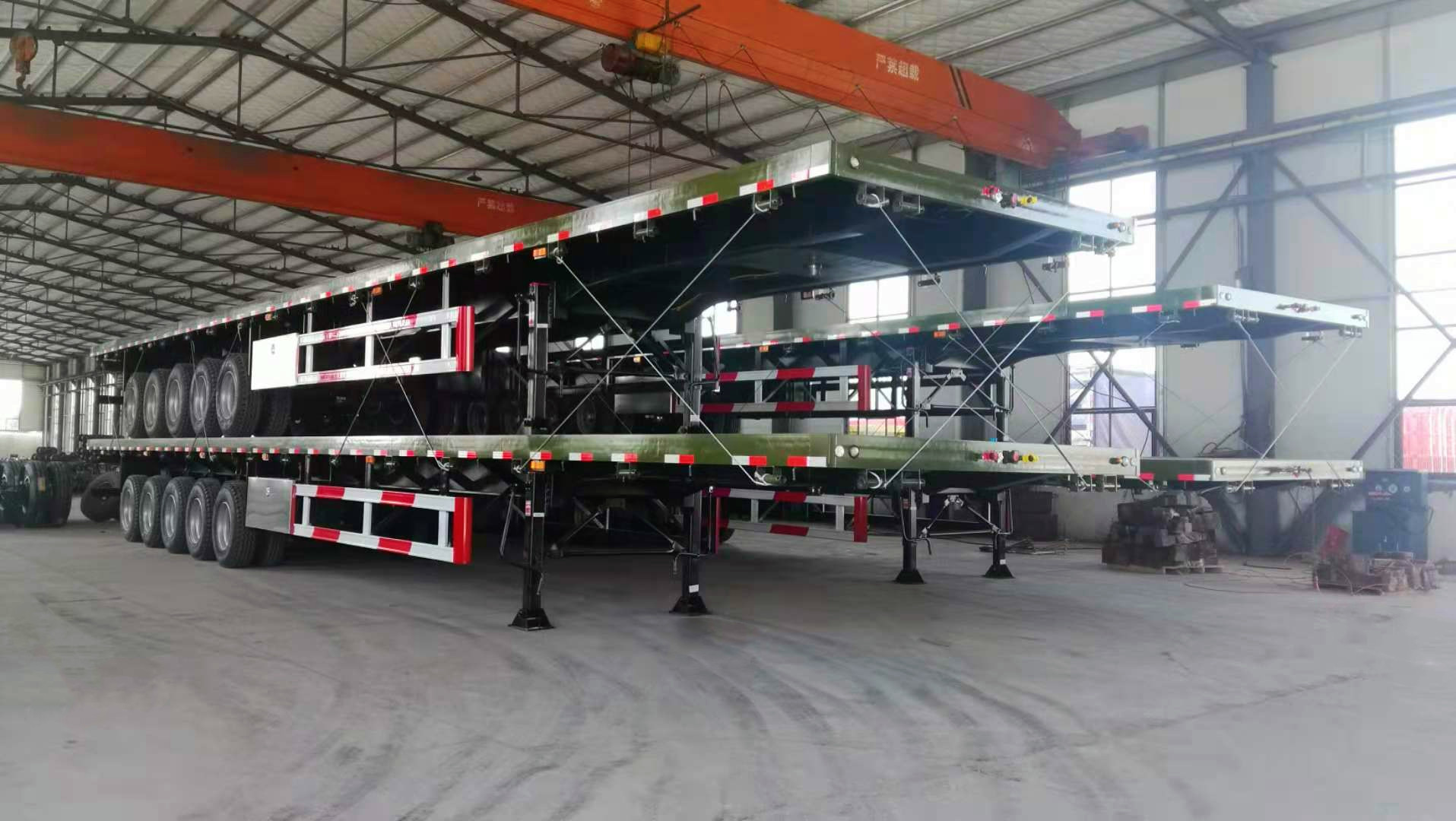

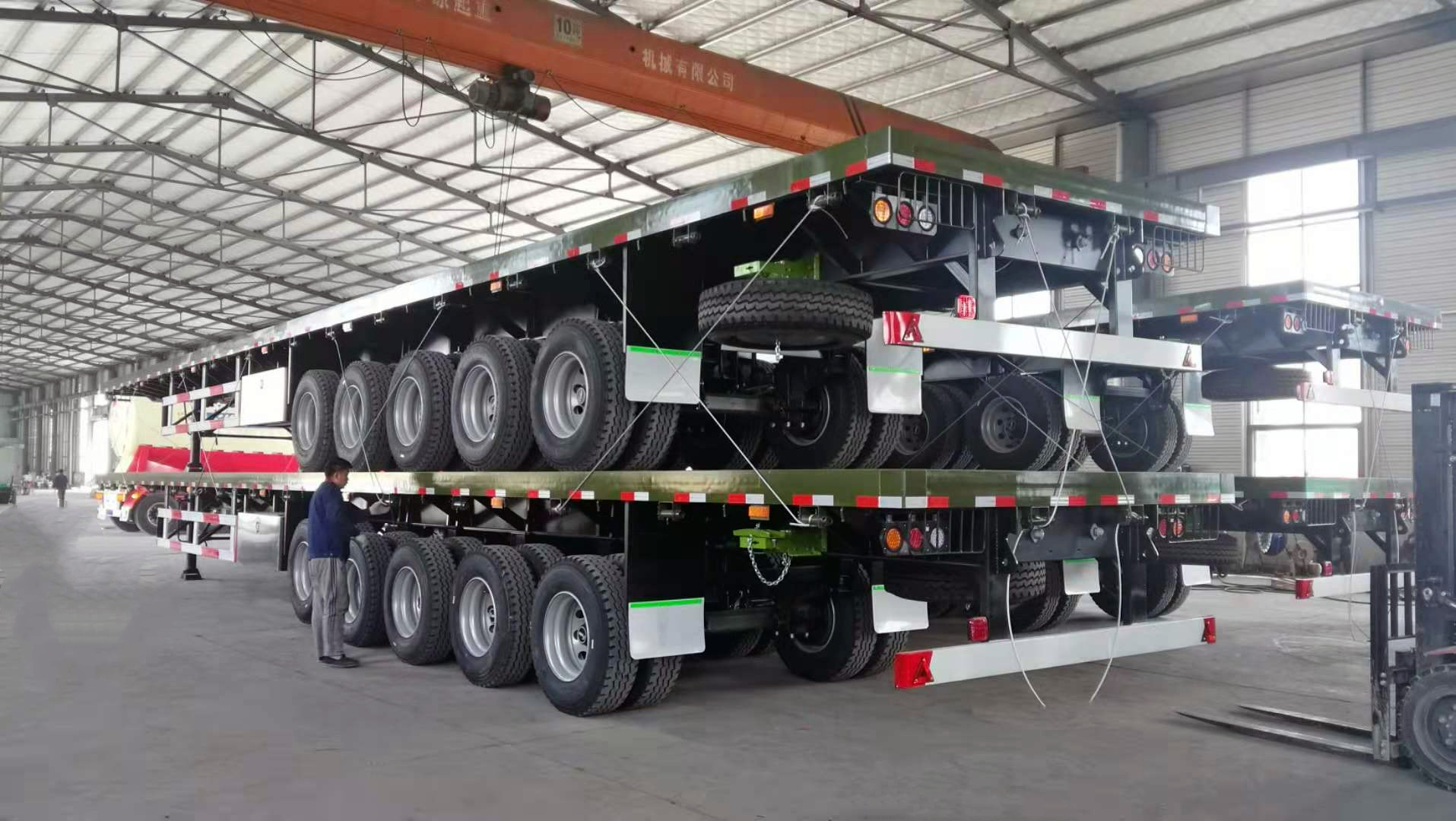

Package performance, Transport to the port, and lifting and installing onto the ship are very import for the bulk cargo shipment. If you choose bulk cargo ship way, you can check the pictures to pack the trailers. The trailer must undergo rust prevention treatment before shipment. It is a normal and approved way by the market. This way can be ensure the complete finished trailer.
