40FT and 40FT Interlink Flat Deck Trailer Specification
The 40 FT and 40 FT Interlink Flat Deck Trailer design idea from the train. It mostly same to the 20 FT and 40 FT interlink flat deck trailer. It can transport four 20 FT containers or two 40 FT containers together. More heavy duty capacity and larger volume. It is widely use for coaling , building material, Grain transportation. The interlink design trailer is very popular because the high efficient and large volume transportation on one transportation trip.
Front Trailer:
Size: 12800mmX2550X1300mm
Curb Weight:~9300kg
I beam: up/down plate 18/20mm Middle plate:12mm
Beam height:530mm
King pin: #90
King pin: 28 T
Suspension: Heavy duty 3 axles American type leaf spring
Axle: 3 axles
Tire: 12R22.5-68
12v/24V Light + electrical pipe+ 7 pin socket
Braking system: Emergency relay valve, air chamber, air tank.
Tool Box 1 pcs, spare tire carrier 1pcs
Rear Trailer
Size: 13850mmX2550X1300mm
Curb Weight:~9700kg
I beam: up/down plate 18/20mm Middle plate:12mm
Beam height:520mm
King pin: #90
King pin: 28 T
Suspension: Heavy duty 3 axles American type leaf spring
Axle: 3 axles
Tire: 12R22.5-68
12v/24V Light + electrical pipe+ 7 pin socket
Braking system: Emergency relay valve, air chamber, air tank.
Tool Box 1 pcs, spare tire carrier 1pcs
Dolly Trailer
Size: 5600 X 2500 mm
Curb weight: ~4200kg
I beam: up/down plate 18/20mm Middle plate:12mm
Beam height:290 mm
King pin: Welding type
Suspension: Heavy duty 2 axles American type leaf spring
Axle: 2 axles
Tire: 8 pcs 12R22.5-68
Braking system: Emergency relay valve, air chamber, air tank.

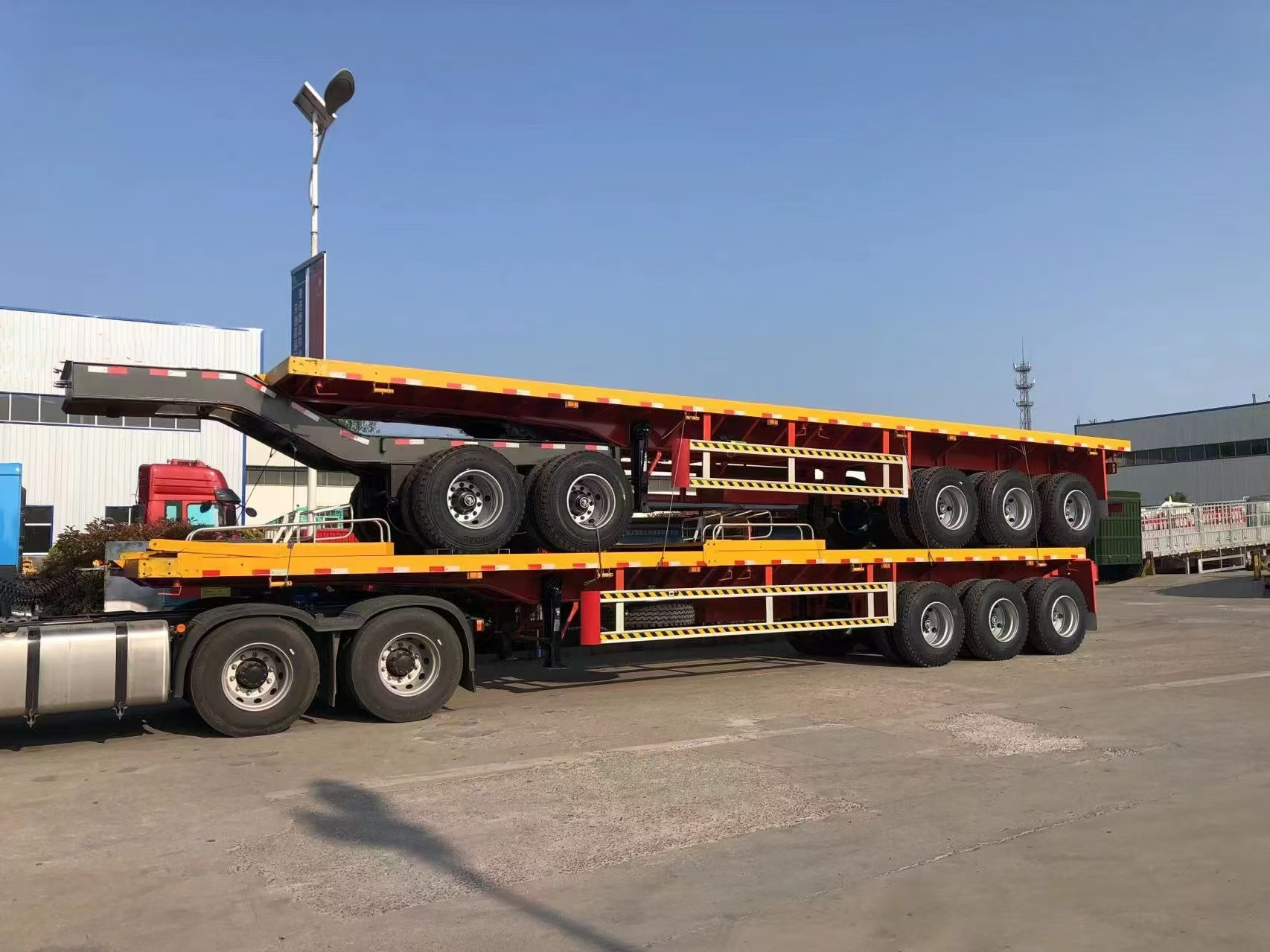

Shipping package method:
