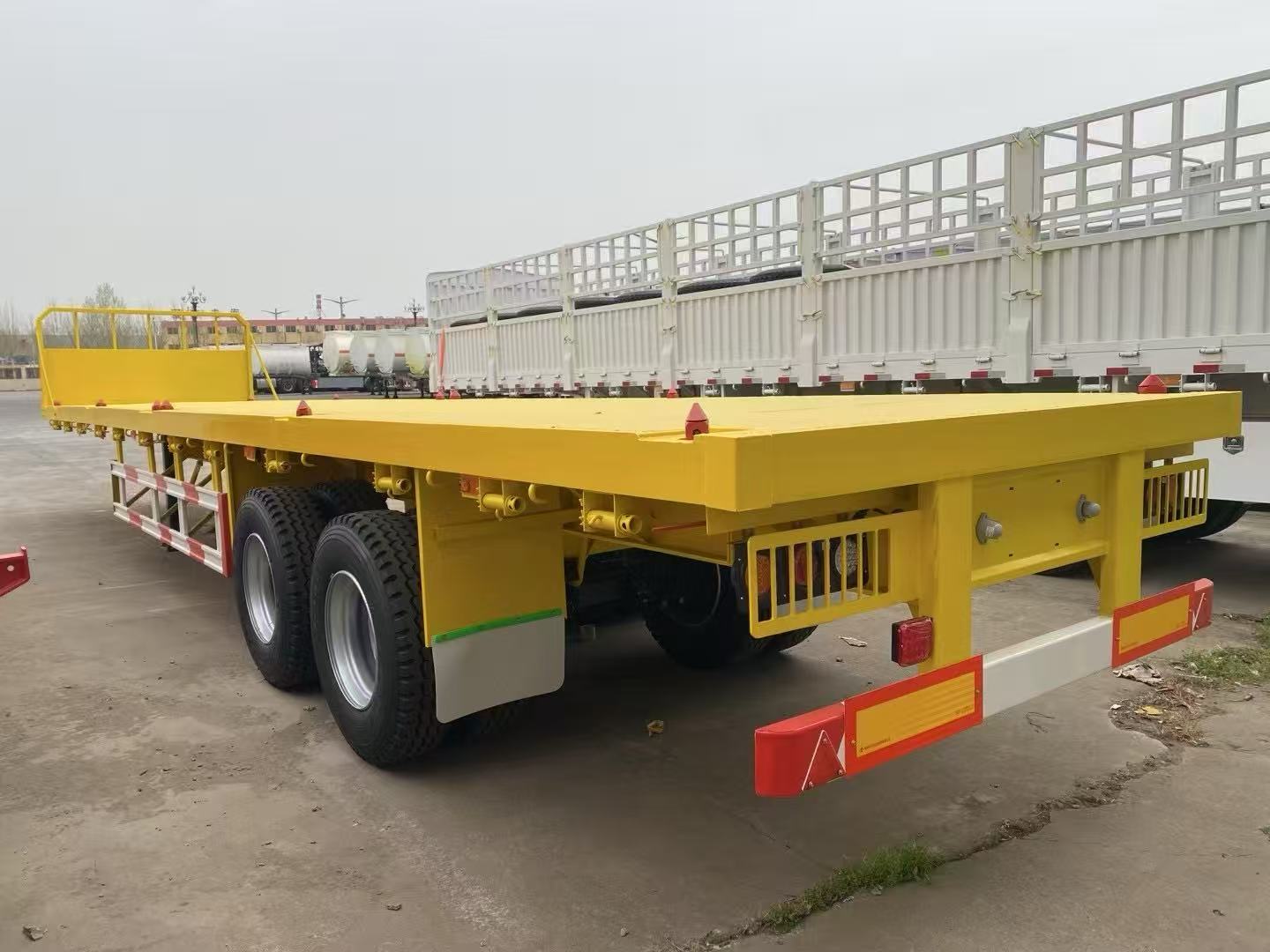

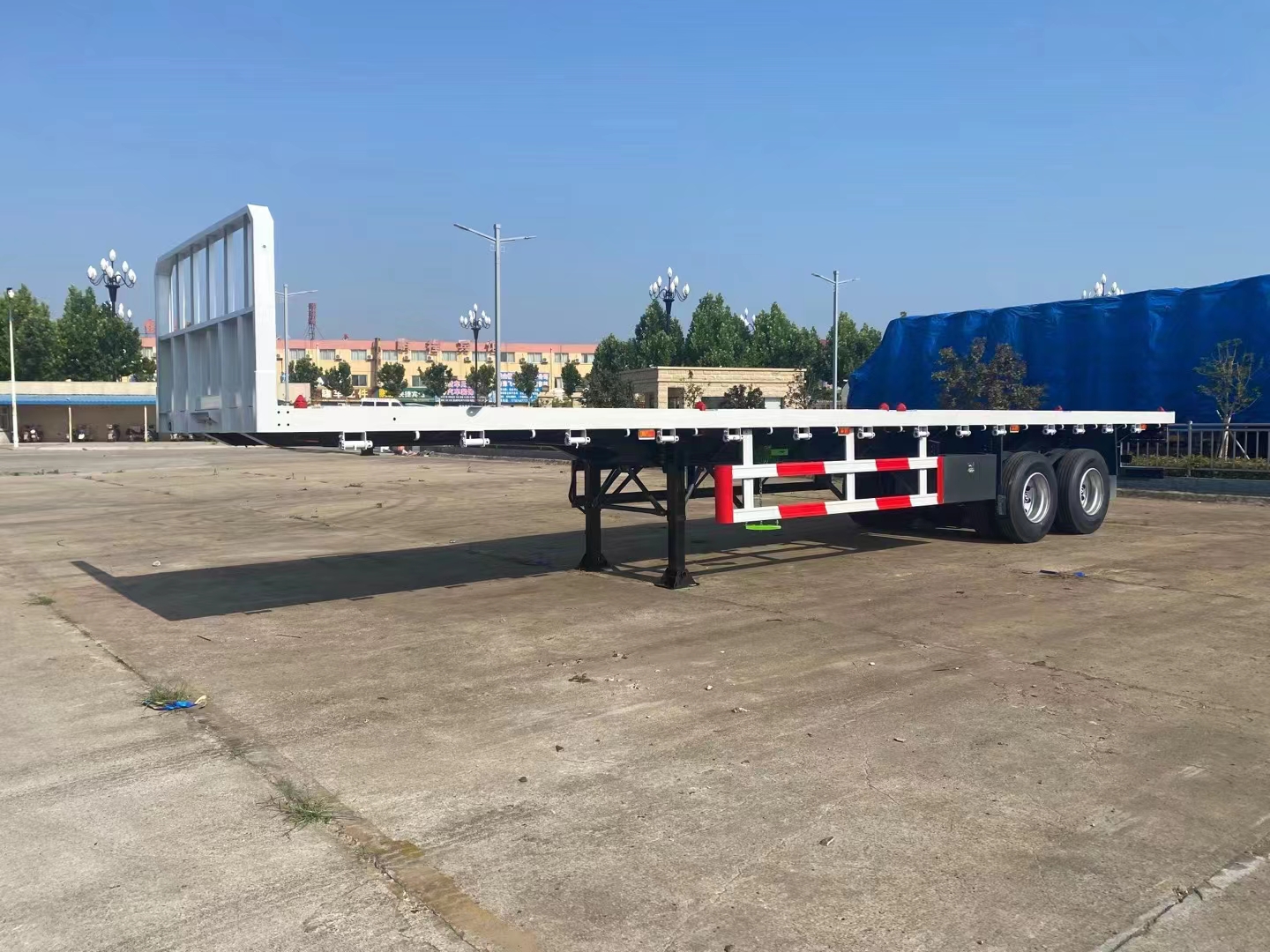

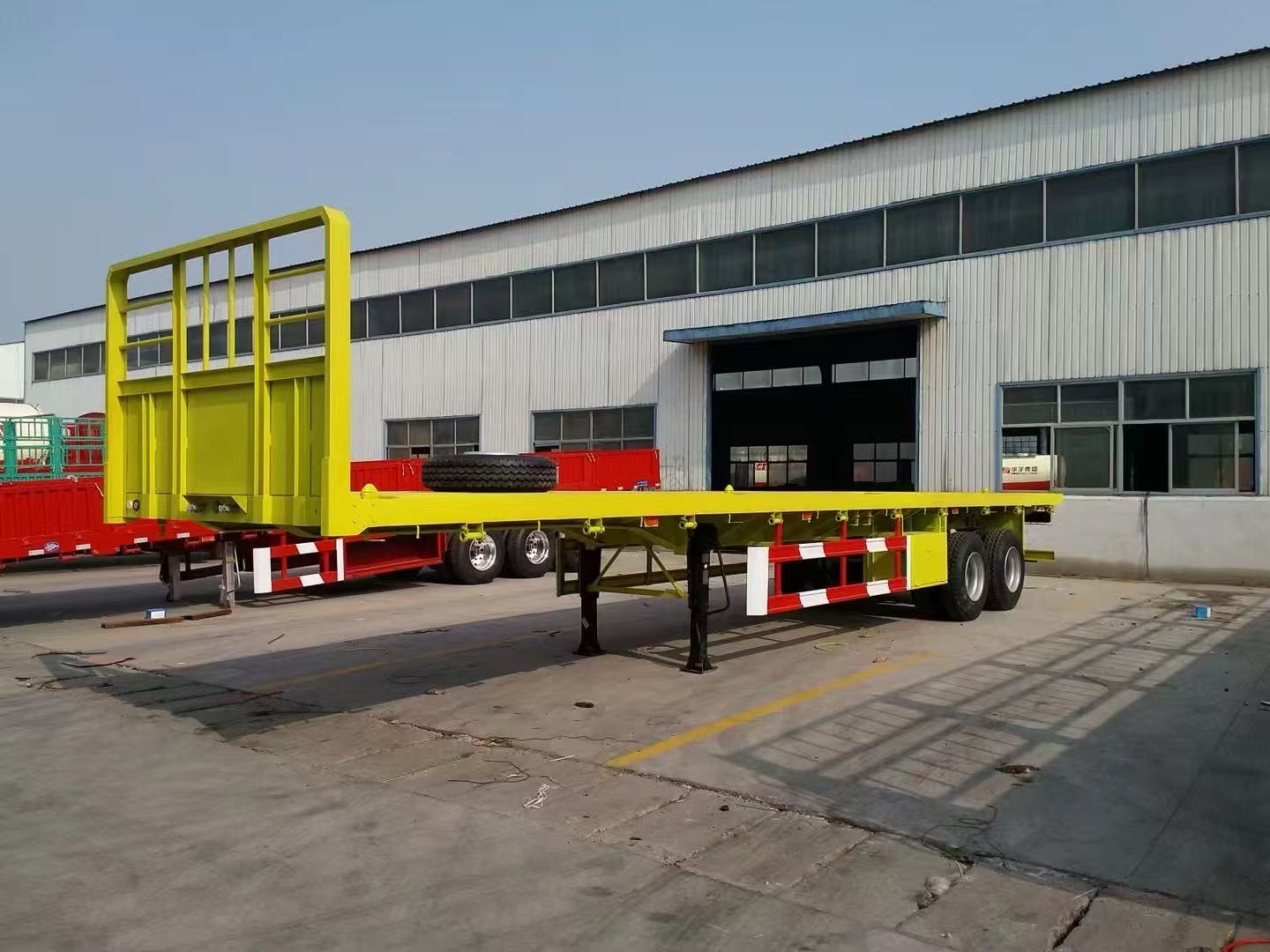

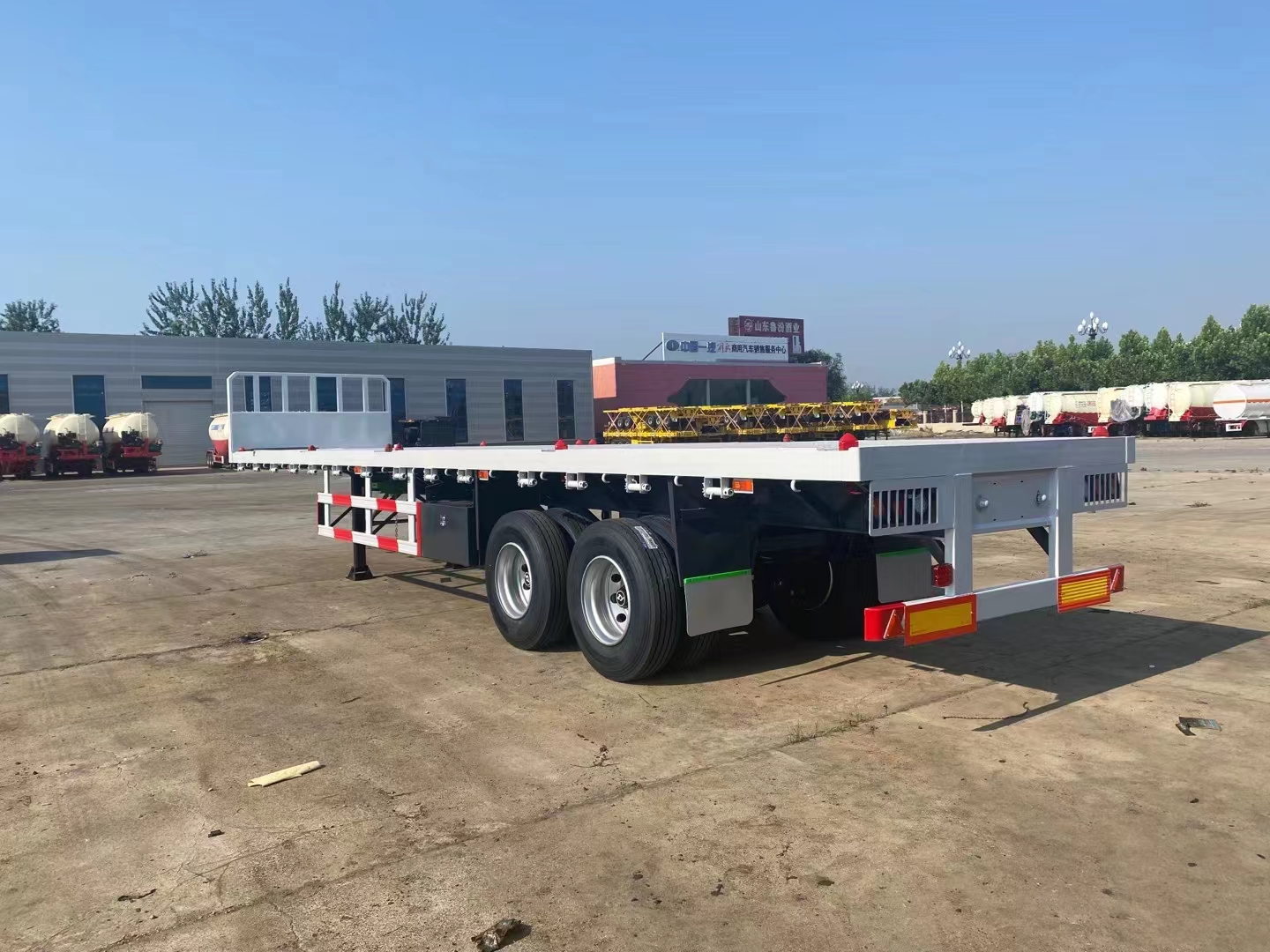

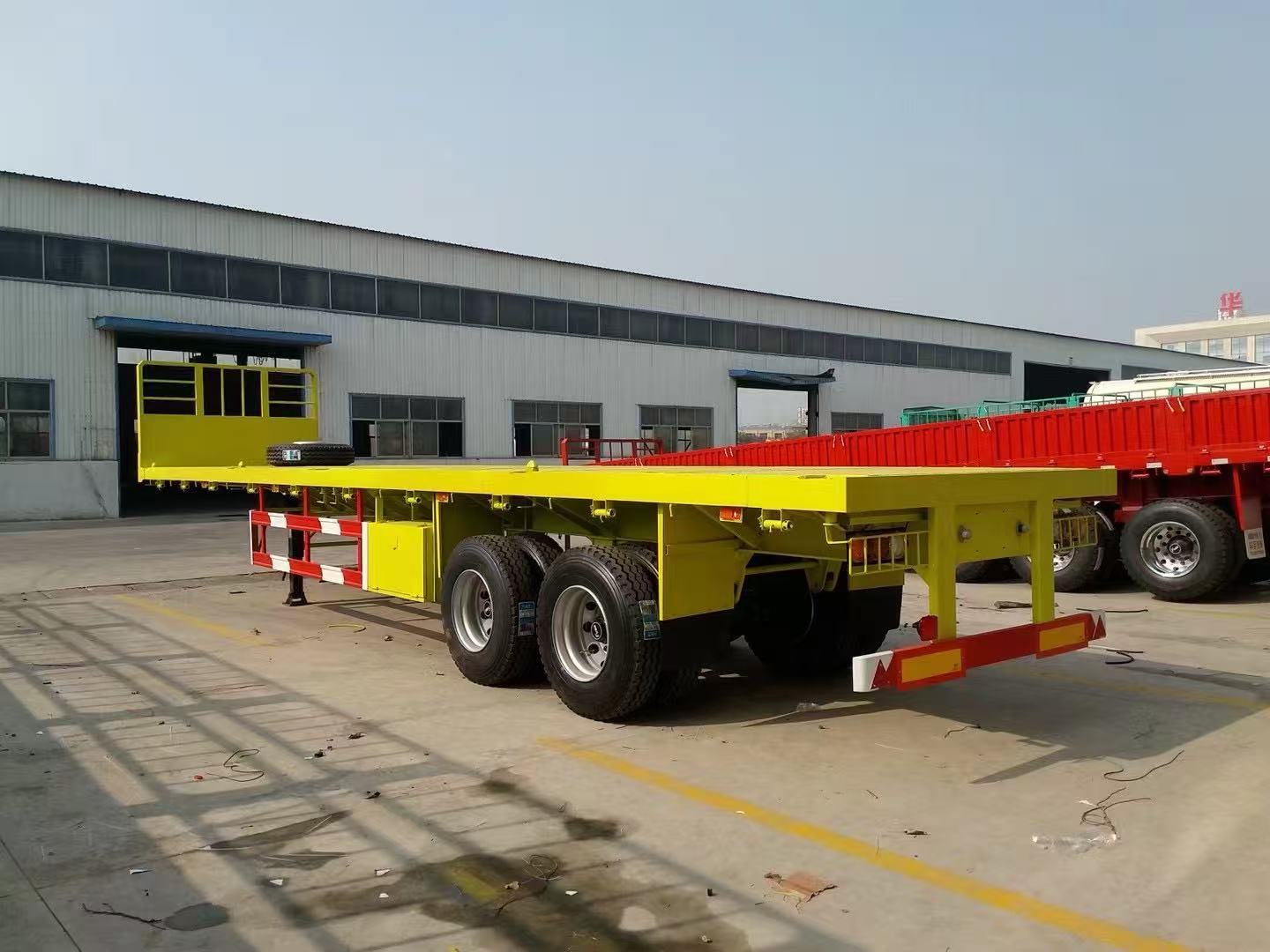

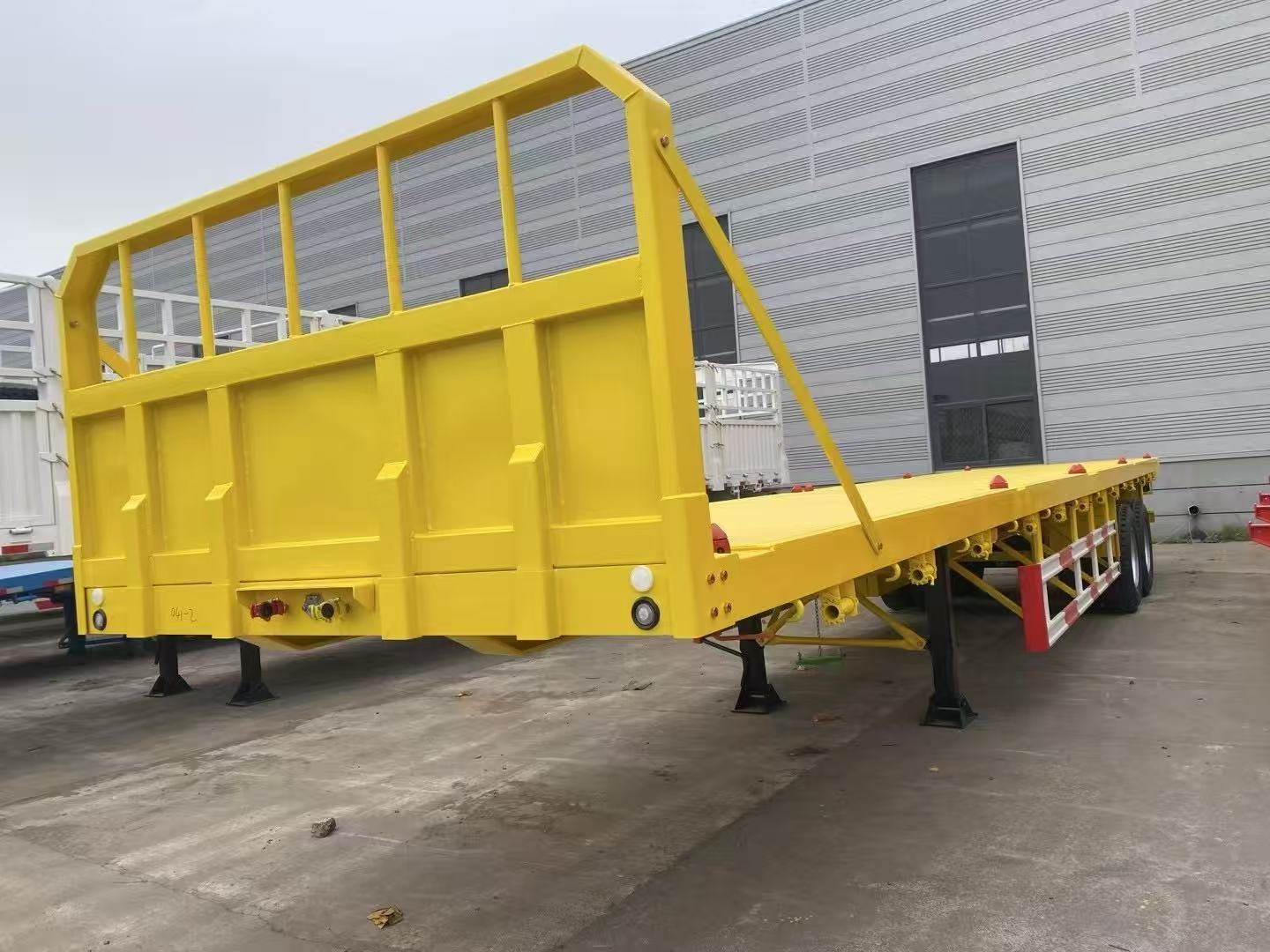

2 Axles Flatbed Trailer With Front Board Specification
A flatbed trailer is a type semi-trailer with container twist lock and front board. Widely used in logistics systems, ports, routes, transfer stations, and multi modal transport for bulk cargo moving. It is mainly used for long distance transportation. Generally, the load capacity is 30-80 ton. Flatbed trailer also is called platform semitrailer, container trailer, flatbed truck trailer, flat deck semitrailer, and so on.
20/40/45/53Â Feet flatbed trailer size:
20 FT flatbed trailer: （7100-8500 ）X 2500 X 1500 mm
40 FT flatbed trailer: （12100-12500）X 2500 X 1500 mm
45 FT flatbed trailer: （13700-14000）X 2500 X 1500 mm
Loading Capacity: 30-80 T
King Pin: 50# / 90# Assembly type
Landing Gear:Â Linkage or Single action
Twist lock: International Standard
Suspension: Mechanical, Air suspension
Axle: 13 T/ 16 T BPW, FUWA, YUEK, China Brand
Tire: 12 R 22.5-16
Rim:Â Steel/ Aluminum
I beam: High-strength steel ensure the loading capacity
ABS:Â Optional
12V /24V LED Light
Emergency relay valve, Air chamber, Spare tire carrier, Tool box, line hook, tie-down winch, Related tools.
Surface: Color customize by customer requirement
The whole trailer surface must be blasting rust remove
Advanced powder coating and Oil paint for customer choice
Flatbed trailer shipping method:
A: shipping by container
Shipping by container is a good way to protect the trailer surface and keep high efficiency. But the rear position(Behind the last tire) must be cut to shorten the total length. It is a traditional way to deal with the length problem. the deck will be assembled by a lot of bolt at the destination. The final performance of loading capacity is same.
B: shipping by bulk cargo ship

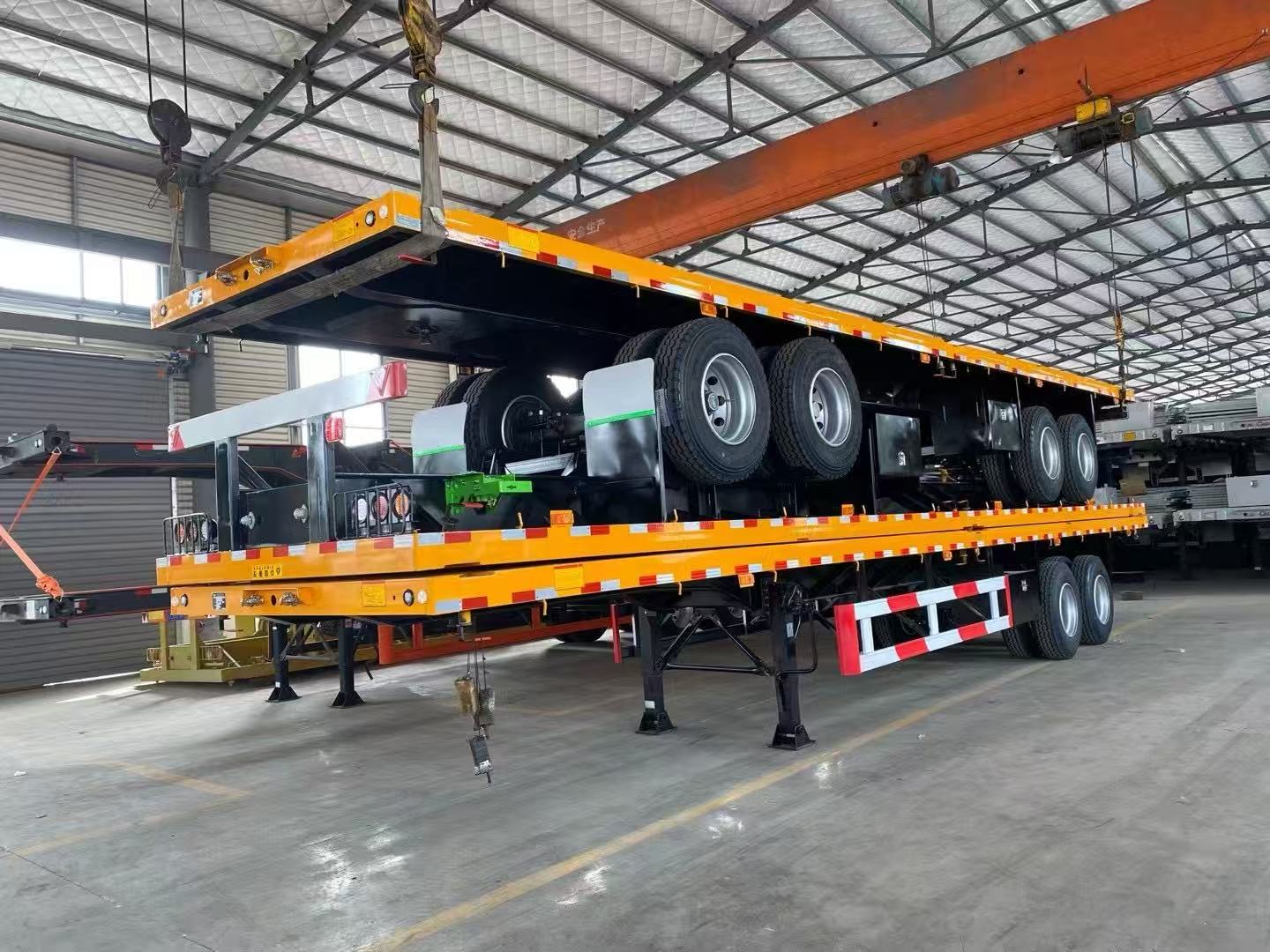

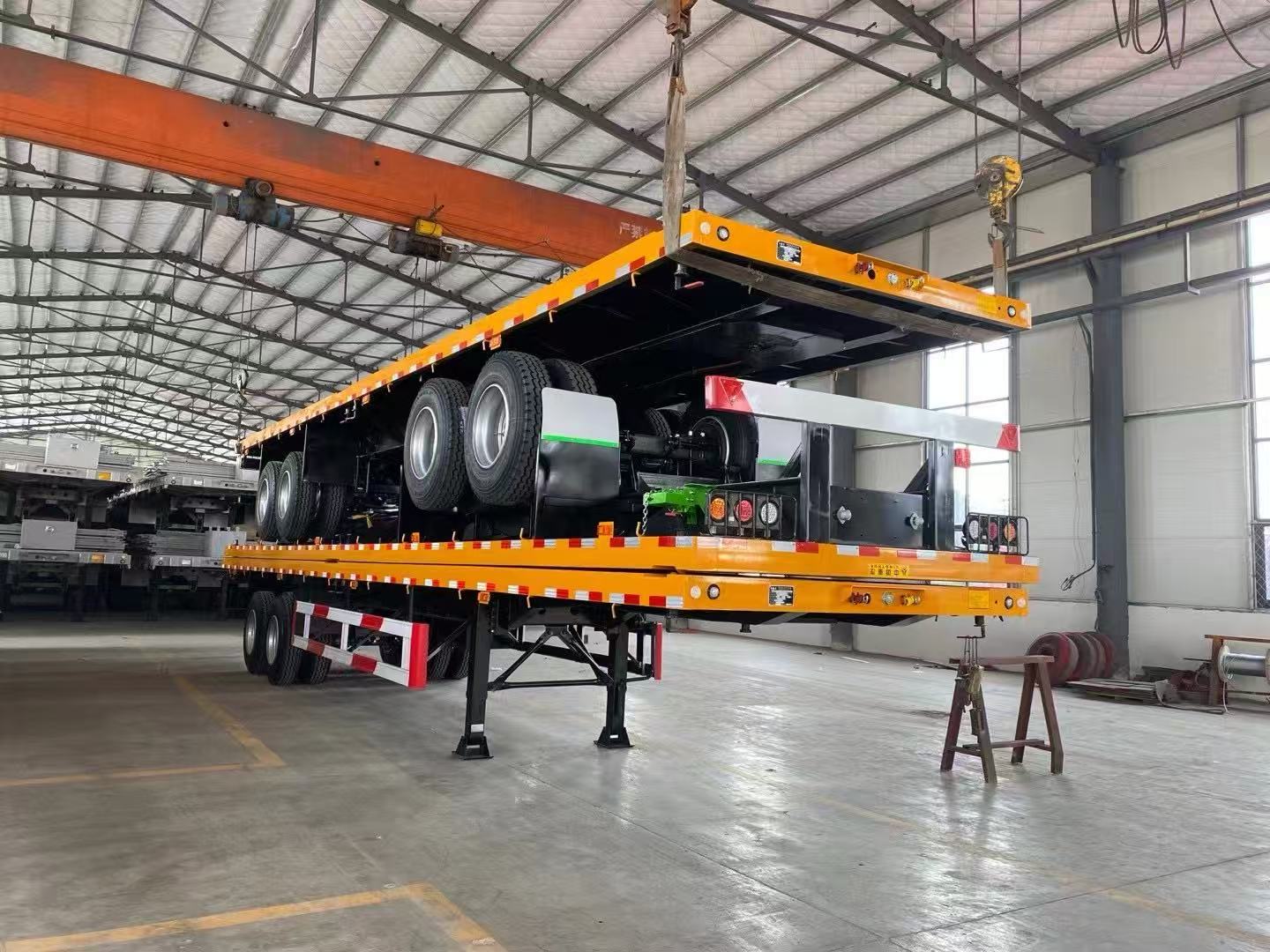

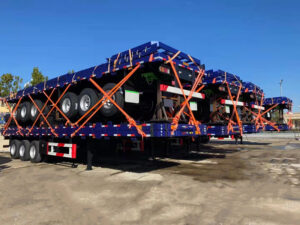

Generally 2 or 3 pcs as one unit to pack together shipping out. It can make sure the trailer is completely one whole deck. Sometimes the shipping date is not so stable and the surface of trailer easy to polluted because of a long time stay on the ship.
Currently both of the way is very experienced to ensure your trailer safety and strong enough
The specification list is for esteemed customer reference, customize the trailer by your principle is acceptable.
